Cementing Services
Wellpro’s cementing units have been design and manufactured by Wellpro for local conditions and regulations, to complete onshore cementing jobs from primary casing to plug & abandonments. It offers the smallest operational footprint in the sector.

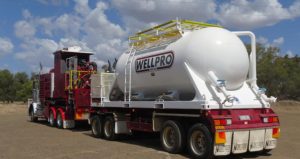

- Truck: Western Start 4800 FX
- Density Control: The cement units include a mechanically-driven recirculating, high energy mixing system which provides an excellent slurry density control and slurry consistency over a wide range of densities. Density accuracy: ± 0.1 ppg
- Mixing Capabilities: Slurries with densities over 14.5ppg can be mixed at rates exceeding 4 bbl/min and higher water content slurries can be mixed at rates exceeding 7 bbl/min.
- Dust Free Mixing: The high energy slurry mixing system is fully enclosed which allows for dust free operations and prevents dust escaping to atmosphere between the mixing system and bulk delivery tank.
- Pump Rates: from 0.25 bbl/min up to 14 bbl/min
- Pump: Triplex Gardner 600 HP pump with 4” Plungers
- Engine: 4 stroke S60 Detort Diesel engine producing 550 bhp
- Fully certified high-pressure iron pumping package
Cement Pumping Unit Specifications
Single Pump Cement Unit
- Gardner & Denver – Triplex Pump – 600 primarypump w/4” plungers
- ESD
- Enclose operating
- Real-Time data acquisition system with 2 density meters
- 2 x 12 bbl water displacement tanks
- Wellpro dust less high energy slurry mixing system
- 2 x Mix pump 6”X 5” mission sand master
- 3” x 2” mission mix water pump
- Fully enclose deck engine
- DBA rating 65 to 75
- Night work lights fitted
- 25m flexible high-pressure hose fitted to hydraulic driven real
- Slurry Mix tubs capacity 6 bbl
- Spark proof and lagged exhaust
- Air intake strangler
- Eye wash station
- Access stairs
- Fire extinguisher
- First aid kid
- IVMS vehicle monitoring system
Truck
- 4800 FX
- Engine S60 Detroit
- Diesel – 550 Horsepower
- 4800 Allison Transmission
- Deutz TTD 305 Horsepower Deck Engine
Other
- 10 m x 4” Suction Hose
- 10 m x 3” Lay Flat
Data Acquisition
- Real-Time data acquisition system
Unit Safety Features
- All operations controlled from inside controller cabin
- Unit mounted/remote emergency shutdowns
- Secondary egress from operator cabin
Small Foot Print Operations
Compact Cement Package
Single load for majority of cementing operations
